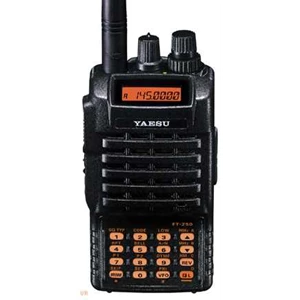

HT YAESU FT-250

Features 209 Memories 5 Watts RF Output Backlit Keypad 700mW Audio Output Smart Search Operation PL Encode/ Decode DCS Encode/ Decode Memory Only Mode FT-250 Specifications GENERAL Frequency Range Receive: 136 - 174 MHz Frequency Range Transmit: 144 - 148 MHz Channel Steps: 5/ 10/ 12.5/ 15/ 20/ 25 & 50 kHz Standard Repeater Shift: ± 600 kHz Emission Type: F2D, F3E Supply Voltage: 6.0~ 16 VDC Current Consumption: 130 mA ( Receive) 0 8 mA ( Auto Power Off) 0 1300mA ( 5W) Case Size: 2.3" W x 4.3" H x 1" D ( 58x109x27mm) Weight: 12.4 oz. 352 g. ( Approx., w/ ant. & battery) 0 RECEIVER Circuit Type: Double-conversion superheterodyne Sensitivity ( 12dB SINAD) : Better than 0.16uV Adjacent Channel Selectivity: Better than 70 dB Intermodulation: Better than 70 dB AF Output: 0.4W @ 8 Ohms for 5% THD ( @ 7.2 V) 0 TRANSMITTER RF Power Output: 5/ 2/ 0.5W ( @ 7.2 V DC) Frequency Stability: Better than ± 5 ppm Modulation Type: Variable Reactance Maximum Deviation: ± 5 kHz Spurious Emission: Better than 60 dB below carrier Audio Distortion: Less than 5% ( @ 1 kHz, w/ 3 kHz deviation) Microphone Impedance: 2 k Ohm Condenser
